ПВХ изолированные провода и кабели с номинальное напряжение 450 750V и ниже
Ключевые слова:
Категория:
Описание
Scope of application
It is suitable for fixed and mobile laying cables for power, household appliances, instruments, telecommunications equipment and lighting lines with DC or AC 50HZ and rated voltages of 450/750V and below.
Use characteristics and main electrical performance indicators
1. The rated cable voltage U0/U is divided into 450/750V, 300/300, 300/500V;
2. The long-term working temperature of the cable conductor does not exceed 70℃;
3. The cable laying environment is not lower than 0℃;
4. Water test voltage: rated voltage 450/750V: 2500V/5min insulation does not break down; rated voltage 300/300V: 2000V/5min insulation does not break down; rated voltage 300/500V: 2000V/5min insulation does not break down wear.
5. The minimum bending radius of the cable: the bending radius of the cable outer diameter less than 25mm and below should not be less than 4D (D cable diameter); the bending radius of the cable outer diameter 25mm and above should not be less than 6D (D cable diameter);
6. The cable meets the relevant technical indicators and relevant technical indicators of GB/T5023-2008 "PVC insulated cables with rated voltages of 450/750V and below" and JB/T8734-2016 "PVC insulated cables and cords with rated voltages of 450/750V and below" Claim.
Cable model name
|
Model |
Name |
Number of cores |
Production range mm2 |
Rated voltage V |
Executive standard |
|
60227IEC01（BV） |
General purpose single-core hard conductor non-sheathed cable |
1 |
1.5-400 |
450/750 |
GB/T5023.3 |
|
60227IEC02（RV） |
General purpose single core soft conductor non-sheathed cable |
1 |
1.5-240 |
450/750 |
|
|
60227IEC05（BV） |
Single-core solid conductor non-sheathed cable with conductor operating temperature of 70℃ for internal wiring |
1 |
0.5-1.0 |
300/500 |
|
|
60227IEC06（RV） |
Single core soft conductor non-sheathed cable with conductor operating temperature of 70℃ for internal wiring |
1 |
0.5-1.0 |
300/500 |
|
|
60227IEC07（BV-90） |
Single-core solid conductor non-sheathed cable with conductor operating temperature of 90℃ for internal wiring |
1 |
0.5-2.5 |
300/500 |
|
|
60227IEC08（RV-90） |
Single core soft conductor non-sheathed cable with conductor operating temperature of 90℃ for internal wiring |
1 |
0.5-2.5 |
300/500 |
|
|
60227IEC10（BVV） |
Lightweight PVC sheathed cable |
2～5 |
1.5-35 |
300/500 |
GB/T5023.4 |
|
60227IEC52（RVV） |
Lightweight PVC sheathed cord |
2～3 |
0.5-0.75 |
300/300 |
GB/T5023.5 |
|
60227IEC53（RVV） |
Ordinary PVC sheathed cord |
2～5 |
0.75-2.5 |
300/500 |
|
|
BV |
Copper core PVC insulated wire |
1 |
0.75-1.0 |
300/500 |
JB/T8734.2 |
|
BLV |
Aluminum core PVC insulated wire |
1 |
2.5-400 |
450/750 |
|
|
BVR |
Copper core PVC insulated flexible wire |
1 |
2.5-70 |
450/750 |
JB/T8734.2 |
|
BVV |
Copper core PVC insulated sheathed round cable |
1 |
0.75-10 |
300/500 |
|
|
BLVV |
Aluminum core PVC insulated sheathed round cable |
1 |
2.5-10 |
300/500 |
|
|
BVVB |
Copper core PVC insulated and sheathed flat cable |
2～3 |
0.75-10 |
300/500 |
|
|
BLVVB |
Aluminum core PVC insulated and sheathed flat cable |
2～3 |
0.75-10 |
300/500 |
|
|
RVS |
Copper core PVC insulated stranded flexible cable for connection |
2 |
0.5～6 |
300/300 |
JB/T8734.3 |
|
RVB |
Copper core PVC insulated flat non-sheathed flexible cable |
2 |
0.5～6 |
300/300 |
|
|
RVV |
Copper core PVC insulated PVC sheathed flexible cable |
2～41 |
0.5～10 |
300/500 |
|
|
RVVP |
Copper core PVC insulated shielded PVC sheathed flexible cable (wire) |
1～16 |
0.5～2.5 |
300/300 |
JB/T8734.5 |
Flame-retardant, fire-resistant wire
Current flame-retardant and fire-resistant wire model
|
Series code |
Codename |
Name |
|
Flame retardant series |
ZA |
Flame Retardant Class A |
|
Refractory series |
N |
refractory |
The performance of flame-retardant and fire-resistant wire meets the requirements of GB/T19666-2019.

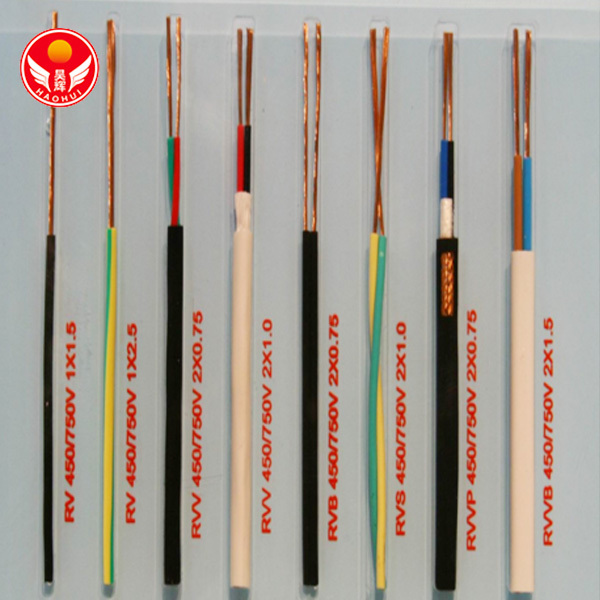

Wire physical map
