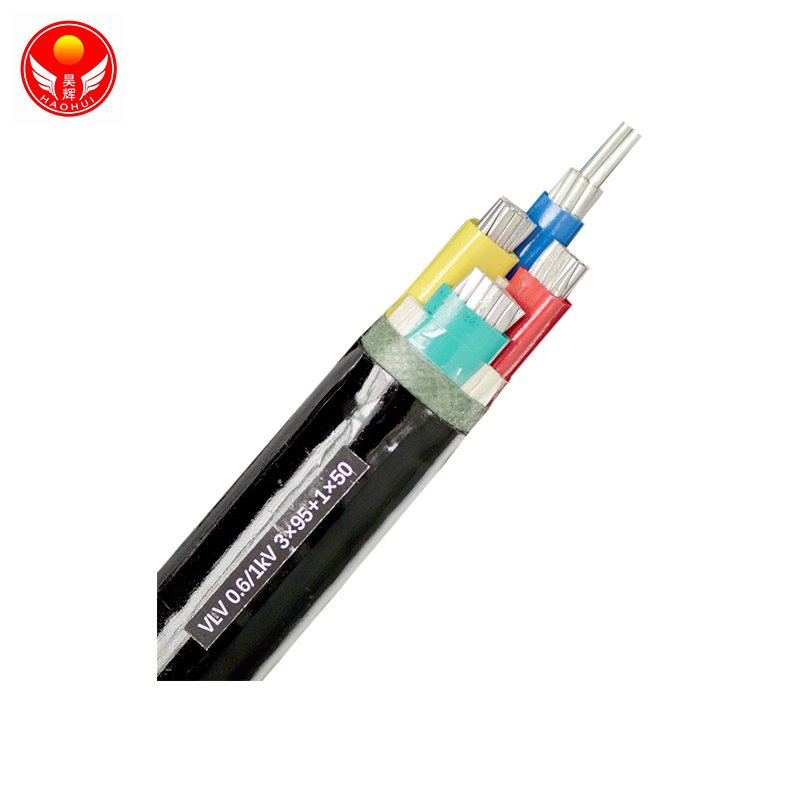

VLV0.6/1kV ПВХ изоляцией кабель питания

This product is suitable for distribution networks, industrial devices and other fields, and is used for fixed laying on power transmission lines with AC 50HZ and rated voltage of 0.6/1kV to transmit electric energy.

Ключевые слова:

VLV0.6/1kV ПВХ изоляцией кабель питания

Категория:

Кабель питания низкого напряжения

WhatsApp:

8615563501083

Электронная почта:

luhaozhang@haohuicable.com

Сообщение продукта

Сопутствующие товары

Описание

Scope of Application
This product is suitable for distribution networks, industrial devices and other fields, and is used for fixed laying on power transmission lines with AC 50HZ and rated voltage of 0.6/1kV to transmit electric energy.

Standard Implemented
Standard Implemented for this product is GB/T 12706 Extruded Insulated Power Cables with Rated Voltages from 1kV (Um=1.2kV) to 35kV (Um=40.5kV), GB/T 12706.1 Part I: Rated voltages of 1.2kV (Um=7.2kV) and 3kV (Um=3.6kV).

Usage Characteristics
1. Permissible long-term working temperature of cable conductor:

The maximum temperature of the conductor of various insulation mixture cables

Insulating compound	Maximum temperature of conductor ℃
Insulating compound	normal operation	Short circuit (the longest lasting 5S)
Polyvinyl chloride (PVC/A) Conductor cross-sectional area≤300mm² Conductor cross-sectional area＞300mm² Cross-linked polyethylene (XLPE)	70 70 90	160 140 250

2. The ambient temperature during cable laying shall not be lower than 0℃
3. Minimum allowable bending radius during cable laying:

Minimum bend radius allowed during cable laying

Project	Single core cable		Multi-core cable
Minimum bending radius of cable during installation	Unarmored	Armored	Unarmored	Armored
	20D	15D	15D	12D
Note: D is the outer diameter of the cable

4. The rated voltage U0/U (Um) of the cable is 0.6/1 (1.2) kV and 1.8/3 (3.6) kV
U0: Rated power frequency voltage between conductor and ground or metal shield for cable design;
U: Rated power frequency voltage between conductors for cable design;
Um: The maximum value of the "highest system voltage" that the equipment can withstand.

Routine Test

Rated voltage U0 (kV)	Test voltage kV
0.6 1.8	3.5 6.5
No insulation breakdown occurs for 5min duration

Common Cable Model and Names

Model		Name
Copper core	Aluminum core	Name
YJV YJY YJV22 YJV23 YJV32 YJV33	YJLV YJLY YJLV22 YJLV23 YJLV32 YJLV33	XLPE insulated and PVC sheathed power cable XLPE insulated polyethylene or polyolefin sheathed power cable XLPE insulated steel tape armored PVC sheathed power cable XLPE insulated steel tape armored PE or polyolefin sheathed power cable XLPE insulated thin round steel wire armored PVC sheathed power cable XLPE insulated thin round steel wire armored PE or polyolefin sheathed power cable
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	PVC insulated and sheathed power cable Polyvinyl chloride insulated polyethylene or polyolefin sheathed power cable PVC insulated steel tape armored PVC sheathed power cable PVC insulated steel tape armored polyethylene or polyolefin sheathed power cable PVC insulated thin round steel wire armored PVC sheathed power cable PVC insulated thin round steel wire armored polyethylene or polyolefin sheathed power cable
The models in the table do not include flame retardant properties

Code of Combustion Characteristics of Current Products

Series code		Codename	Name
Flame retardant series	Halogenated	ZA ZB ZC ZD	Flame Retardant Class A Flame Retardant Class B Flame retardant class C Flame retardant class D
Flame retardant series	Halogen-free and low-smoke	WDZ WDZA WDZB WDZC WDZD	Halogen-free low-smoke flame retardant Halogen-free low-smoke flame retardant Class A Halogen-free low-smoke flame retardant class B Halogen-free low-smoke flame retardant class C Halogen-free low-smoke flame retardant Class D
Refractory series	Halogenated	N ZAN ZBN ZCN ZDN	refractory Flame-retardant Class A fire-resistant Flame-retardant Class B fire-resistant Flame-retardant Class C fire-resistant Flame retardant Class D fire resistant
Refractory series	Halogen-free and low-smoke	WDZN WDZAN WDZBN WDZCN WDZDN	Halogen-free low-smoke flame retardant and fire-resistant Halogen-free low-smoke flame-retardant Class A fire-resistant Halogen-free and low-smoke flame-retardant Class B fire-resistant Halogen-free low-smoke flame-retardant Class C fire-resistant Halogen-free low-smoke flame-retardant Class D fire-resistant
